Force Between Conductors Demonstrator

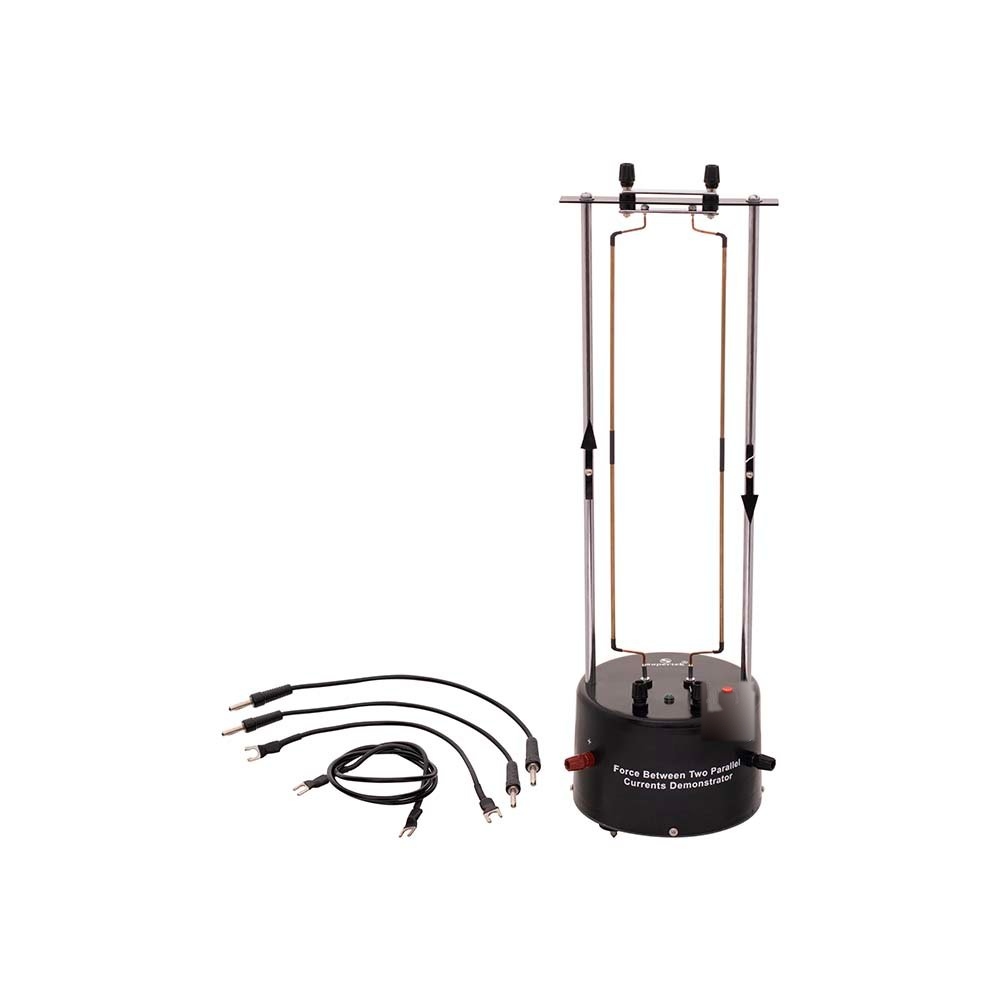

An easy and safe way to demonstrate the magnetic force between two current carrying parallel conductors. A cylindrical base, containing a dedicated power supply, supports a rectangular frame. Attached inside the frame are two parallel heavy duty metal tubes supported by fine cone bearings which also supply current to the tubes. The directions of the currents in the tubes can be selected, and movable metal arrows on the frame uprights indicate the current direction in each tube. A push button applies a large current at low voltage to the tubes, which then swing together or apart, depending on whether the tube currents are in the same or opposite directions.
