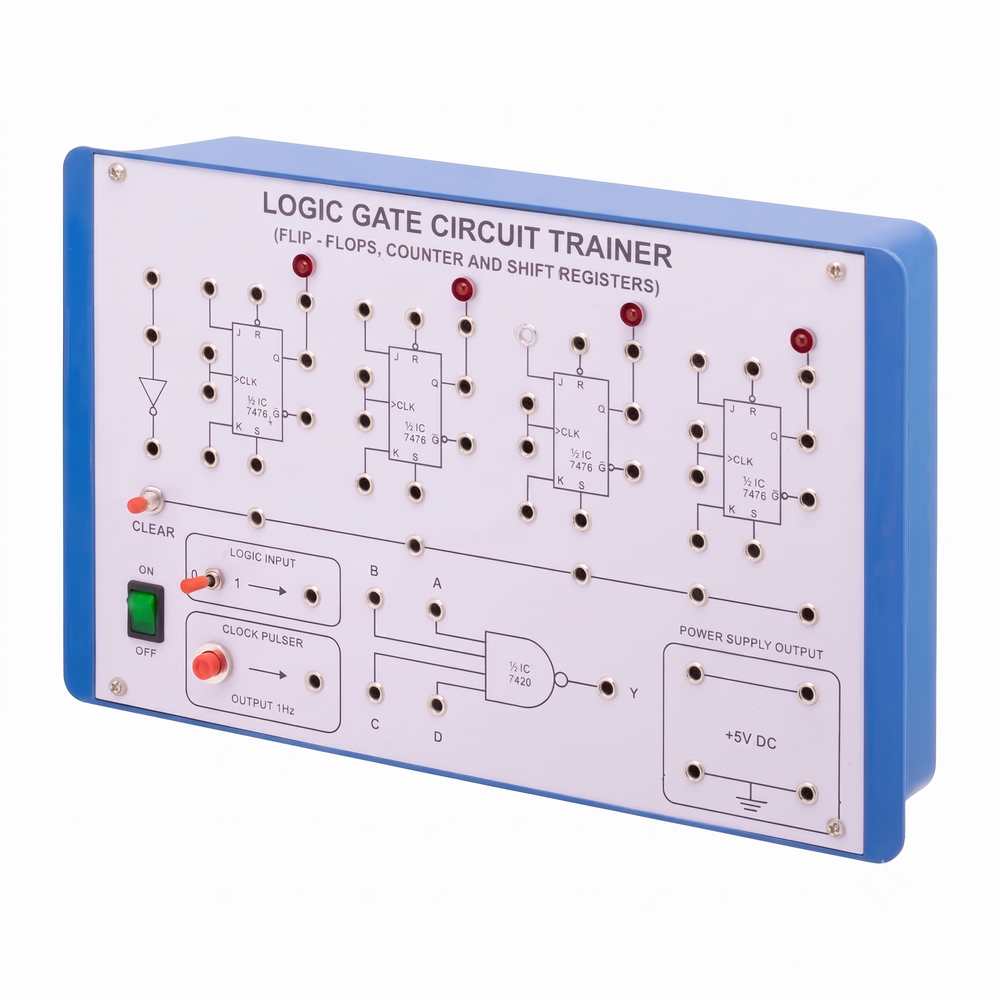

Logic Gate Circuit Trainer

Study and verification of flip flops, counters, shift registers, encoders, decoders, multiplexers, and de-multiplexers. Consists of 8 debounced logic inputs, 8 red LED output indicators, +5 V DC (1 A) regulated, short circuit and overload protected power supply, and 1 Hz mono shot clock pulse. All the ICs and components have been placed inside the cabinet and connections brought out at 4 mm sockets.
