Semiconductor Diode/PN Junction Diode Characteristics Apparatus

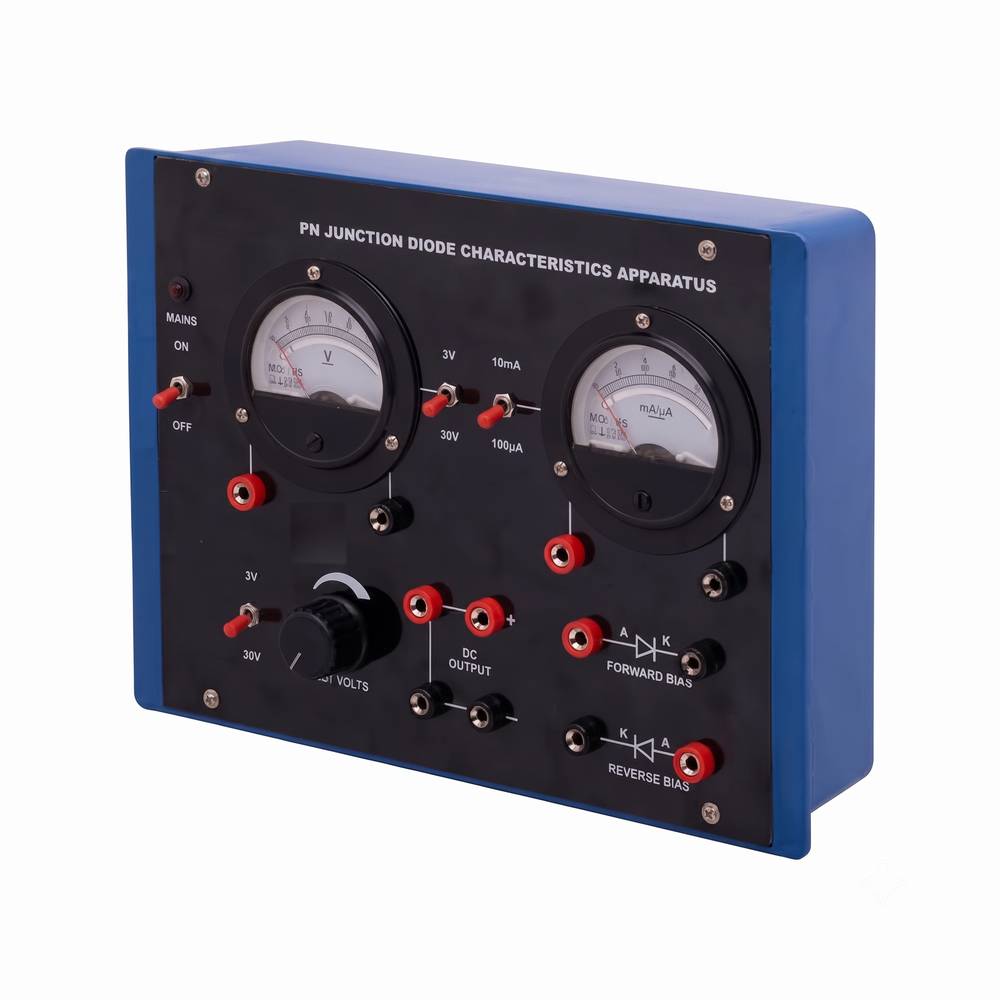

This instrument is designed to study the forward and reverse characteristics of the PN Junction Diode. The instrument comprises two DC Regulated Power Supplies 0 – 3 V DC (150 mA) and 0 – 30 V DC (150 mA). Two dual-range round meters for voltage and current measurement are provided on the front panel. Connections of supplies, meters, and PN Junction diode are brought out at 4mm sockets. 4mm stackable lead and instruction manual are also provided with the instrument.
