Transformer Stand and Core

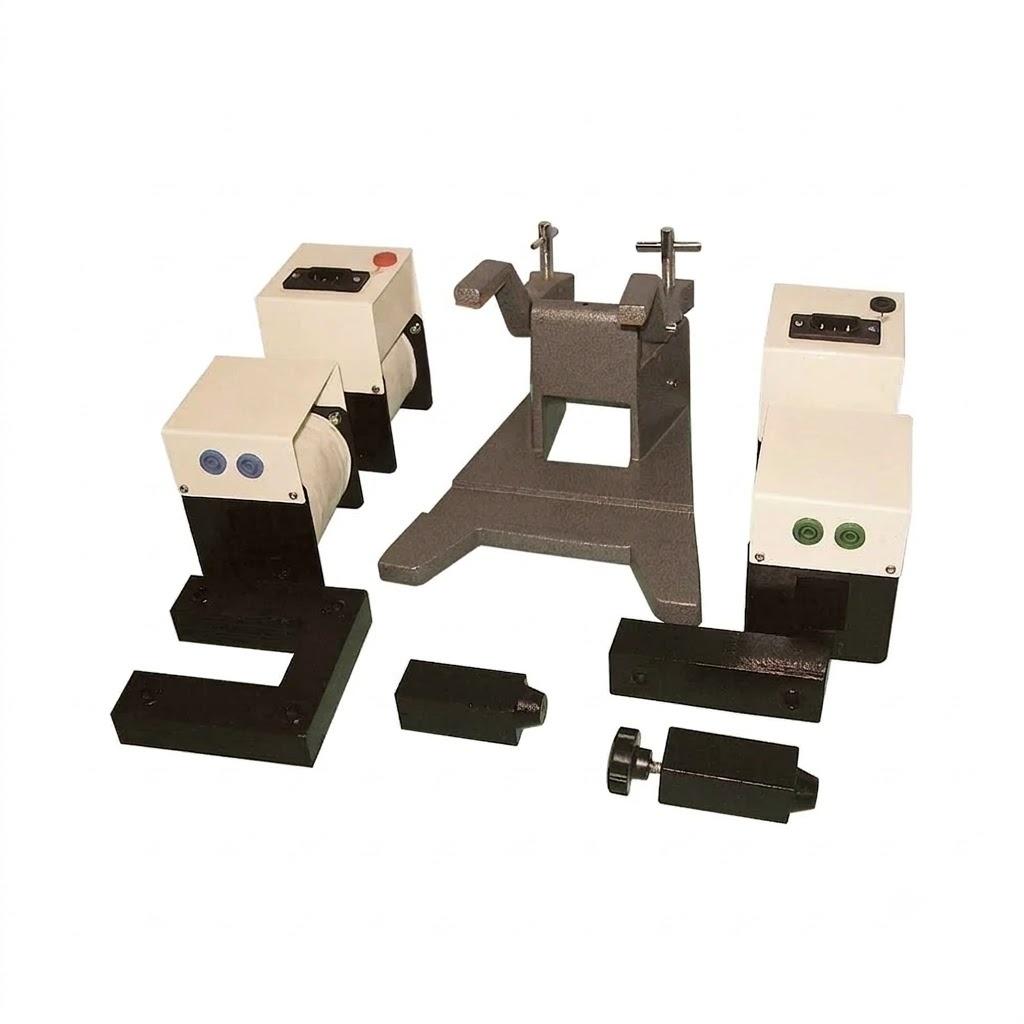

Apparatus is designed primarily for demonstration of the basic principles of transformers. It consists of a laminated U-core with laminated I-core, both with 30 x 25 mm cross-section to form a closed core of size 105 x 140 mm. Heavy aluminium alloy stand with removable clamping rods, 2 pole pieces, each 65 x 25 x25 mm with one end cone-shaped, to accept support rod and shading ring. Poles also have a hole drilled through lengthwise to take a light beam.
