Trans-Ratio

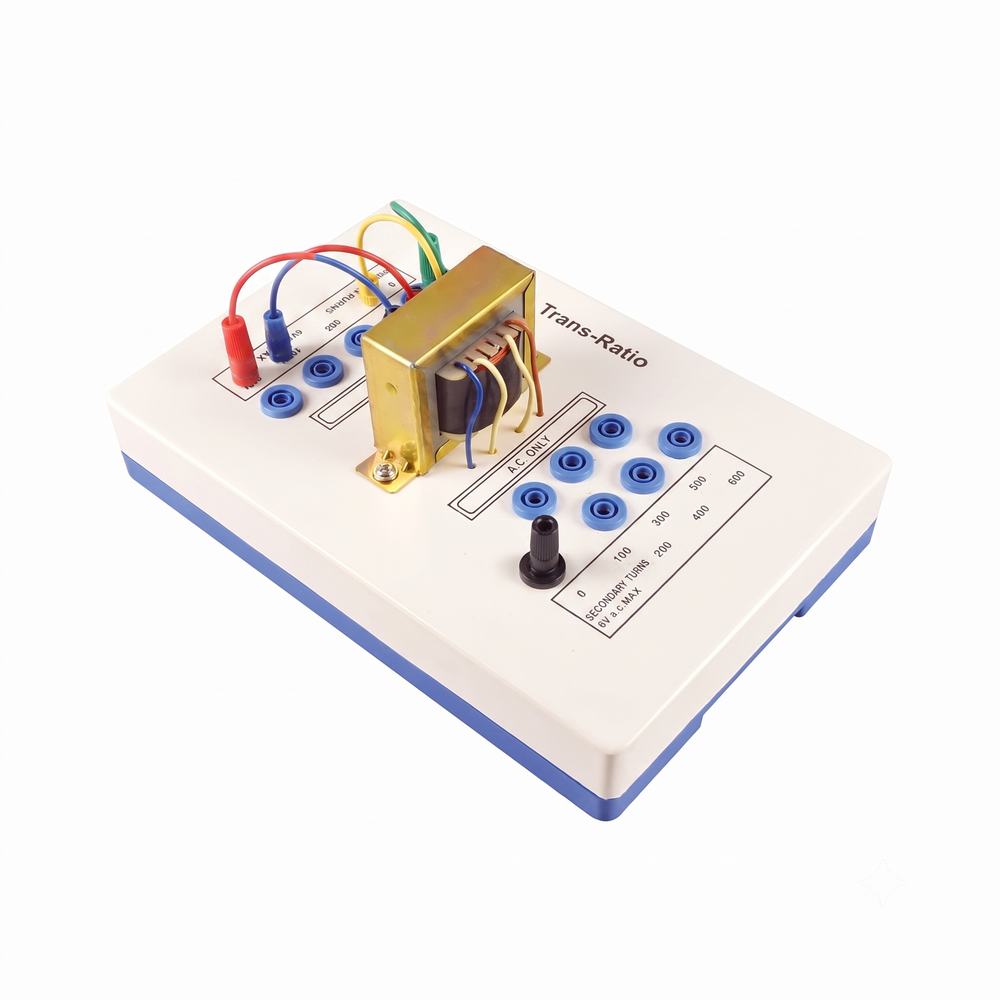

Trans-Ratio is a simple transformer system that allows students to investigate the relationship between primary voltage, secondary voltage and the turns ratio. The Primary coil has tappings at 200, 400 and 600 turns while the Secondary has 100, 200, 300, 400, 500 and 600 turns all brought out to 4mm sockets. An AC supply of upto 6 V as well as AC voltmeters are required for demonstration purpose.
