Oscilloscope

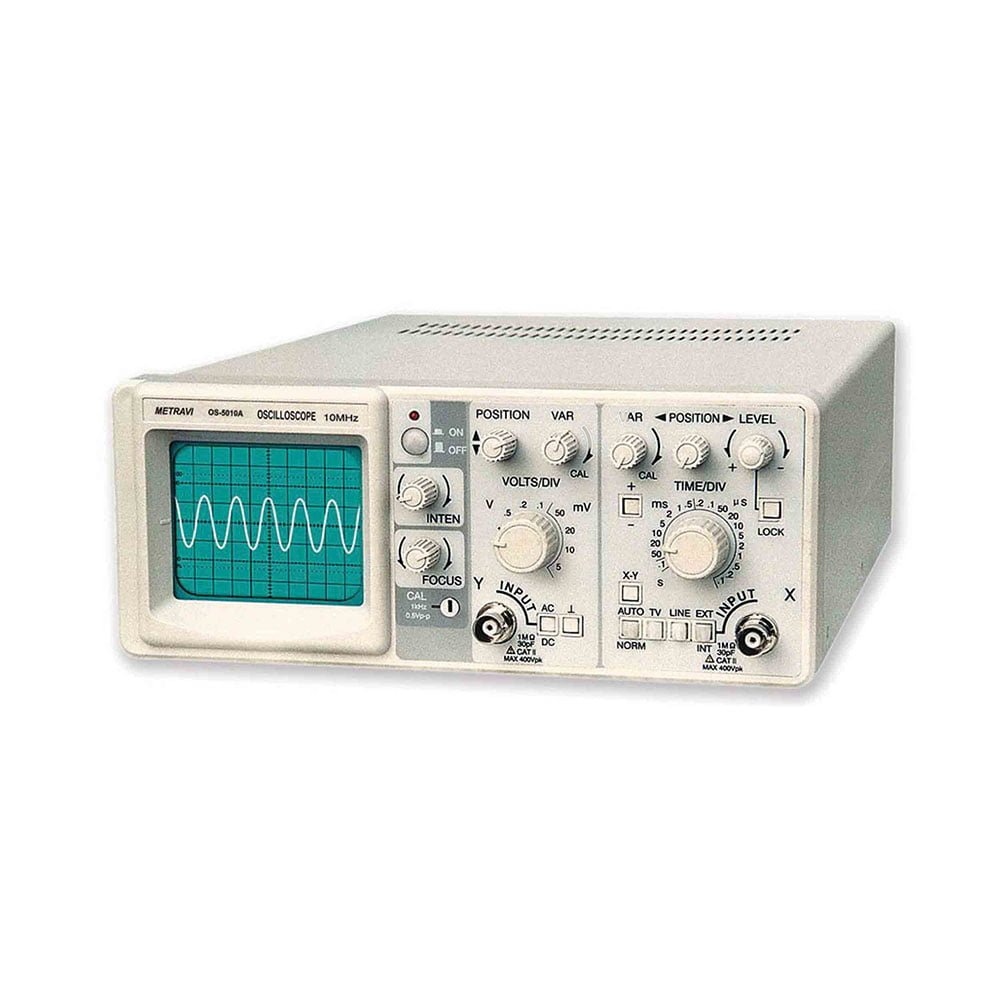

This Oscilloscope is corresponding to horizontal with small in size. The bandwidth of the Y axis is DC 10MHz and the deflection factor is 5mV 5V/div. It can be up to 50V/div. using the 10:1 probe. The sweep deflection factor is 0.1μs/div. Single Channel Single Trace Oscilloscope. Bandwidth: 10 MHz. Confirms EN61010-1 (1993) and EN-IEC61326-1(1997). Wide measurement. High sensitivity and trigger lock. Sweep switch adopts digital code switch and accuracy. Proper to use in colleges and for engineers and technicians. The deflection factor is 5 mV – 5 V / div in a 1-2-5 Sequence in 10 steps. Accuracy: ±5 %. Maximum Input Voltage: 400Vpk. The sweep deflection factor is 0.1 us/div to 0.1s/div. Accuracy: ±5%. Trigger Sensitivity: INT:1.5 div EXT: 0.3V. Trigger mode: INT, EXT, LINE, TV. Trigger Sweep Mode: NORM, AUTO, TV. LOCK. Calibration Signal: 0.5 V Square wave of 1 kHz. CRT Effective working Area: 8 x 10 div. 1 div = 6 mm. Auxiliary Power Supply: 220V AC 50Hz.
