Signal Generator, Digital

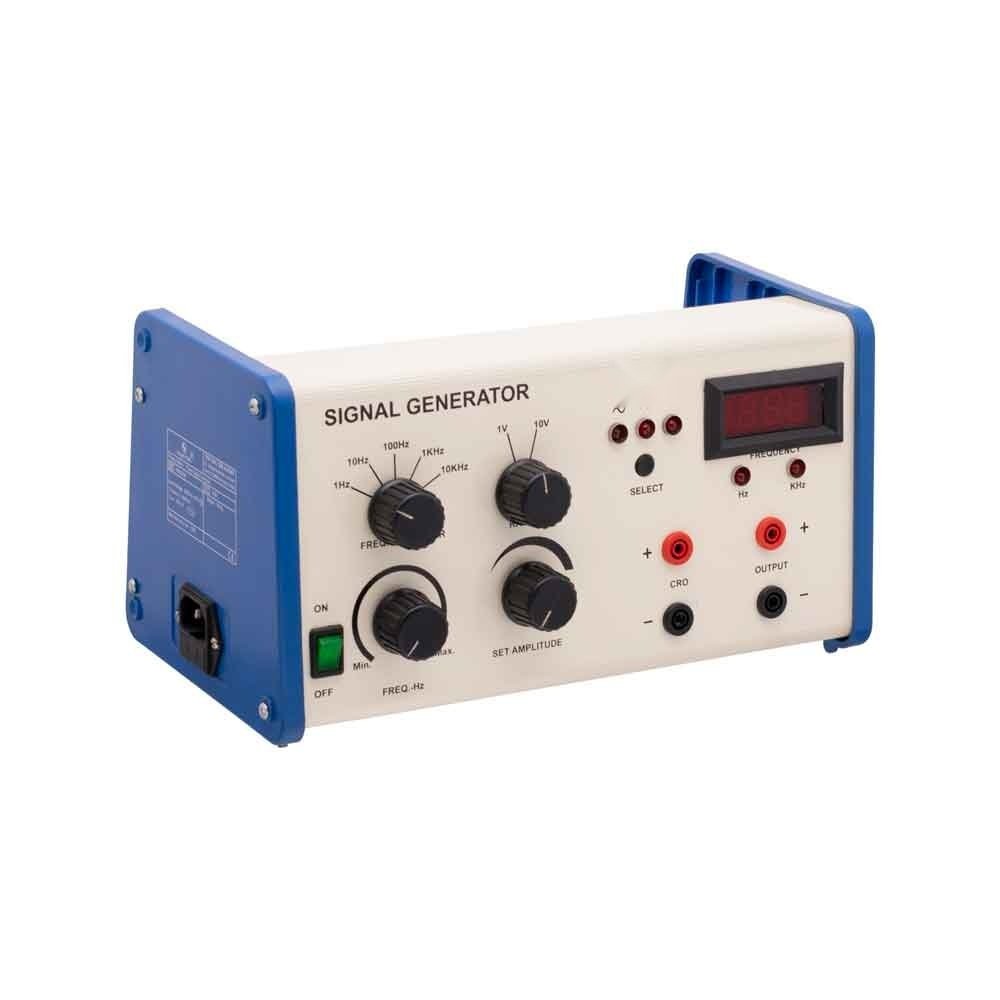

This signal generator is a useful test instrument capable of generating multiple waveforms and offers excellent wave shape, signal linearity, waveform symmetry, and frequency range with a selection of sine, triangular and square waves and amplitude variable 10 V peak to peak. 1 Hz to 100 kHz in five-decade ranges selected by rotary switch named as a frequency multiplier. Sine, triangular and square waveforms are selected by push switch with LED indication. The output signal is 0-3.5 Vrms (10 V peak to peak) open circuit continuously control with an uncalibrated amplitude control knob. Mains rocker switch with indicator Light. Signal Generator is versatile for general laboratory use; the output signal is adjustable with the combination of frequency multiplier and set frequency dial with a low level of distortion. Set frequency is displayed on a 4 seven-segment display. Output Voltage is continuously variable with selector range 1V and 10V. There is two pair of output safety sockets. One for CRO output (experiment for amplification, filter, etc.) and another pair of sockets to speaker to drive a speaker and to demonstrate the audio signal frequency range 20 Hz to 20 KHz without BMC cable. Suggested Leads (not included): PH90051/3 , PH90051/4
